Foam Pump Mold Cost & Development Process

We often get asked about the cost of developing a mold for custom foam pump designs. In this post, we'll walk you through the process, the costs involved, and the timeline — in a simple Q&A format.

Q: What factors influence the foam pump mold cost?

A: Mold cost generally depends on the following:

• Part size – The larger the part, the bigger the mold, and the higher the cost.
• Structure complexity – Intricate designs often require more inserts and detailed machining, which adds to the cost.
• Cavity number – More cavities mean a larger mold and higher cost. We usually recommend the cavity number based on your annual volume.
• Core material – We typically use S136 steel for the mold core.
• Hot runner system – Hot runner molds cost more due to added inserts and thicker mold plates. They're often used for high-cavitation molds, thick-wall parts, or when tight tolerances are required.

Q: What do you need from me to give a mold quote?

A: Just send us your 3D design file (or a 2D drawing if that's what you have), along with your estimated annual volume. That gives us enough to work with.

3D files in .stp format are preferred — it's a universal format that works across all design software and retains full geometric detail for accurate mold design.

Q: What's the typical mold development process and timeline?

A: Here's a step-by-step overview:

• Step 1: 3D or 2D file provided + estimated annual volume.
• Step 2: Mold cost quotation.
• Step 3: 3D sample confirmation.

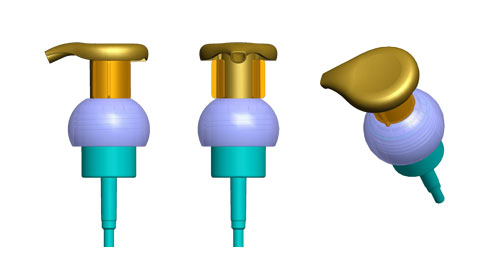

•     - If you have a 3D file: We'll create the product drawing and 3D sample for your approval on structure and appearance. This takes about 7-10 days.
•     - If you only have a 2D drawing: No problem. We can help create the 3D file. This may take a bit longer since we'll need to go through some back-and-forth to clarify the details. Once the 3D file is ready, we move to drawing and sampling as above.
• Step 4: Quotation of the new foam pump provided — this is based on the above product drawing, since that's when we have all the details needed for costing.
• Step 5: Mold order placed & fee paid
• Step 6: Mold design, production and trial production - Samples of the new foam pump typically ready in around 50 days.
• Step 7: Sample approval. After that, we're ready to for mass production. First order lead time approximately 30 days, depending on production schedule.

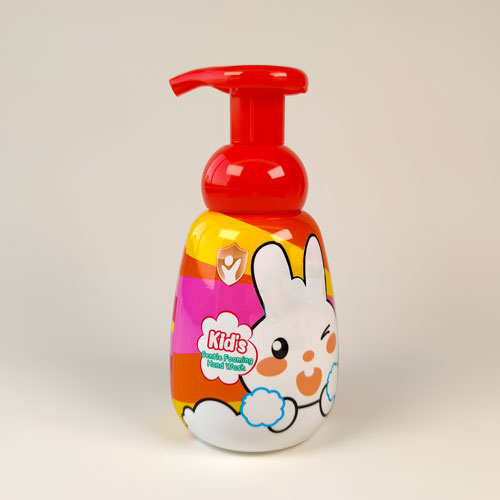

In conclusion, with a 3D file ready, the mold is typically completed in about 2 months, with the first production order ready about a month later.

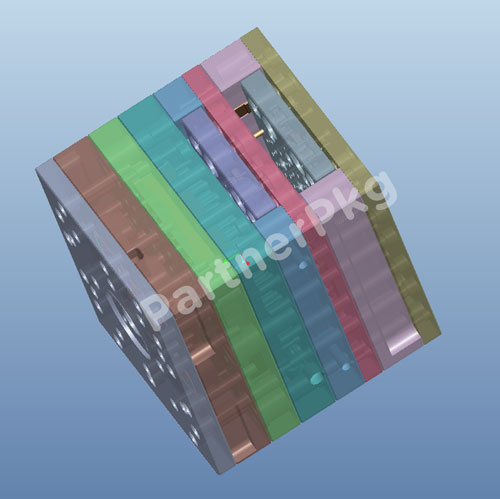

Q: The quality of a mold is determined by how it's made. Can you walk us through how you build your molds?

A: Of course.

1. Material:

We use S136 steel for the core. It's a high-hardness, corrosion-resistant steel — more challenging to machine, but it's the foundation of a long-lasting mold and consistent part quality. Choosing the right material makes everything else possible.

2. Process flow:

Rough machining → Heat treatment → Deep cryogenic treatment → Stress relief → Finish machining.  This process gives the mold a typical lifespan of 5 million shots.

• Heat treatment: Hardens the steel and improves wear resistance. It ensures the mold can handle high-pressure injection over the long term without wearing out — keeping your parts dimensionally stable and flash-free.
• Deep cryogenic treatment: Applied after heat treatment, this step brings the mold to extremely low temperatures to eliminate unstable structures inside the steel. It prevents the mold from deforming over time and helps ensure consistent part quality throughout its entire lifespan.
• Stress relief: Removes internal stress from previous machining steps. This helps prevent cracking or distortion during use, further ensuring mold longevity and precision.
• Finish machining: With the material now stable and hard, we do the final precision machining. This guarantees the mold's dimensional accuracy and surface finish — so your foam pumps are leakage-free, dispense smoothly, and look good.

That wraps up our foam pump mold development process and the craftsmanship that goes into it. If you have any questions, feel free to reach out.
